Oil Purification System

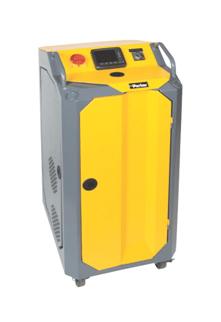

PARKER Sentinel - Portable purification system
Features
- A filter system that removes free water and dissolved water in oil on certain systems.
- After the water content is removed, the 'purified' fluid is returned back to the reservoir, with a maximum flow of 19 l / min.
- Compact, lightweight design for tight spaces, electronic "IQAN" self-diagnostic process control and monitoring system.
- Low power density heater, integrated moisture sensor, easy access to inlet and outlet.
Application field
- Turbine EHC Speed Control Systen
- Lubricant system
- Oil reservoir or tank

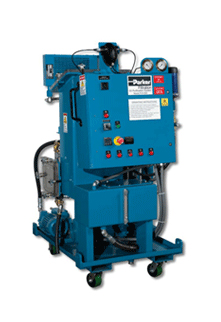

PARKER PVS - Portable Purification System for Water Removal
Features
- Parker's mobile and compact PVS portable purifiers provide a system for vacuum dehydration when needed.
- Purification of lubricating oil and hydraulic tank by removing contaminants and free water / dissolved water / gas in the fluid.
- Removing these contaminants can extend the life of the oil and reduce the cost of oil disposal and replacement.
- Variable flow circuit, unattended automatic operation, moisture sensor for real-time moisture status display.
- Selectable flow rates 37, 75, 113, 170 l / min.
Application field
- Steam & Gas Main Turbine Lubrication System / EHC Speed Control Systen
- Water Saturation Oil Tank / Turbo Inflator and Bearing Lubrication
- Hydraulic Actuator (HPU0) / Boiler Transfer Pump Lubrication (Steam Power Boiler)
- Gearbox / oil reservoir or tank complex

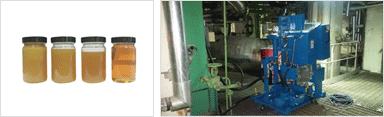

PARKER SMR - Purification System for Varnish Removal
Features
- Parker's smart purification system designed to prevent sludge and varnish buildup and remove it.
- Patented balanced charge aggregation (BCATM) technology that keeps hydraulic and lubricating oils in optimum condition and extends their useful life.
- An ideal solution in the flow range 120 to 600 GPH (454 to 2,268 LPH), the SMR unit is available in a PLC or simple control version.
- Eliminates sub-micron contaminants, insoluble oxides and biological contamination, and decontamination of iron-containing or non-containing components.
- Suitable for phosphate esters, UL, CE and ATEX versions.
- Industry's largest flow
Application field
- Steam & Gas Main Turbine Lubrication System / EHC Speed ??Control System
- Lubrication system for compressors, boilers and bearings
- Hydraulic system / extension loop system
- Oil reservoir or tank complex

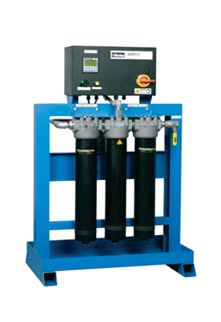

PARKER SOS - Stationary offline system
특징
- Parker's stationary off-line systems provide a complete filtration package to keep hydraulic and lubrication systems clean and dry.
- A compact self-contained unit, SOS features an integral pump, filter and enclosure, making it ideal for power generation installations.
- An ideal solution in the flow range 120 to 600 GPH (454 to 2,268 LPH), the SMR unit is available in a PLC or simple control version.
- Self-locking (continuous on-line or off-line) and high visibility bypass alarms for automatic locking and ease of maintenance.
- Acid regulated and real-time monitoring version, NEMA 4 IP65 enclosure.
Application field
- Hydraulic and Lubricant Filtration / Cooling Tower Fans, Gears, Gearboxes
- Coal Handling System (Gearbox & Grinder) / Grinding Machine Gearbox
- T & D Transformers / Load Tap Changers

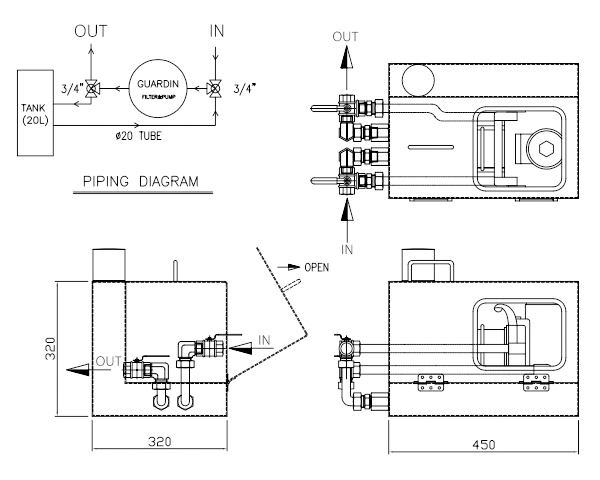

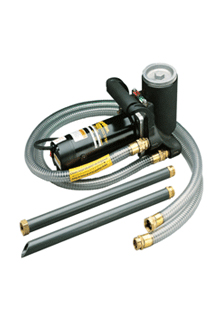

PARKER Guardian - Portable filter system
Features
- Portable filter system designed to 'cleanse' new oil cleanly and deliver it to the system.
- Ultra-compact, lightweight, portable oil filter / pump that is extremely compact and durable.
- Pressure 3, 4 bar, maximum flow 15 l / min
Application field
- Provides filtration for petroleum based oils, water emulsifiers and diesel fuel
- Filtration before using new fluid
- Transfer fluid from storage tank to system storage

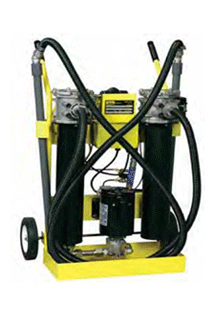

PARKER 10MFP - Portable filter cart
Features
- Filter cart as an ideal means used for lubricating oil as well as for refueling or draining fresh oil
- Lightweight and portable, yet medium-sized steel construction.
- A two-stage filter provides a satisfactory oil cleanliness rating.
- Maximum flow rate 38 l / min, available with Par-GelTM water removal filtration.
- Robust industrial gear pump with 11 foot hose and wand assembly.
Application field
- Filtration before using new fluid
- Transfer fluid from drums or storage tanks to system storage
- Condition control of fluids already in use
- Use in fluids such as hydraulic oil, gear oil and lubrication

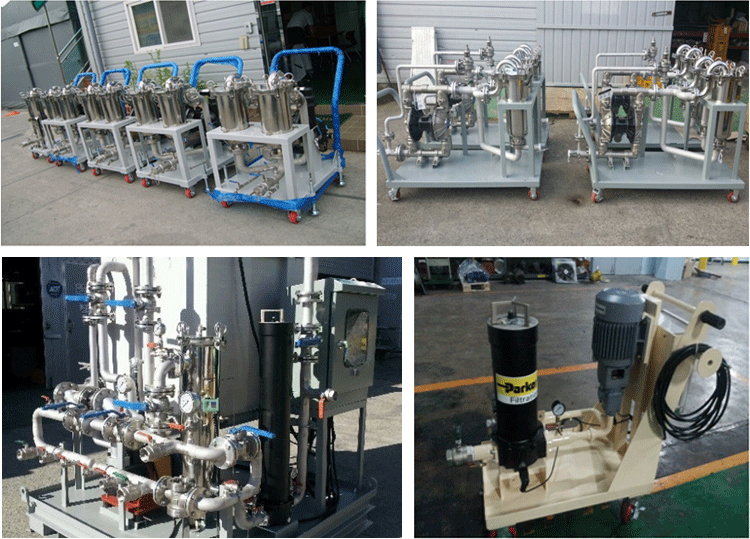

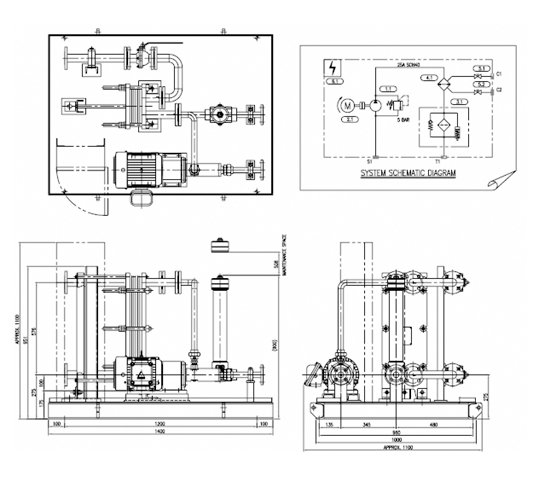

Plate heat exchanger & Oil filtering system
Plate heat exchanger & Oil filtering system
| Series |
Model |
Filter Media |
Power Supply / Electronic equipment |
| FUI |
1120 |
20LPM |
1 |
3㎛ |
|
|
| 1150 |
50LPM |
2 |
6㎛ |
S |
Explosion proof |
| 1100 |
100LPM |
3 |
22㎛ |
M |
Non-explosion proof type |

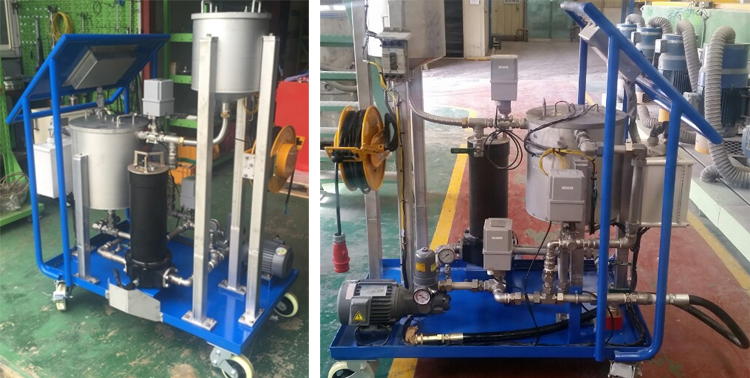

REFILLING SYSTEM
REFILLING SYSTEM
| |
Seals |
Model |
Media |
Power Supply |
Options |
| SYMBOL |
None |
NBGT4 |
10C |
1 |
None |
| Description |
Carboxylates Nitrile
(Standard) |
15L/min |
Cellulose,
10micron |
220V,2P
(Standard) |
- |
※ Consult factory for other options.
Gear Box Lube System
Ordering Information
Gear Box Lube System
| Model |
Flow |
Particle Element |
Power Supply |
| GLS |
7 |
7LPM |
1. 2um
2. 5um
3. 10um
MESH TYPE |
220V (3 PHASE)
380V (3 PHASE)
440V (3 PHASE)
220V (1 PHASE) |
| 10 |
10LPM |
| 15 |
15LPM |
| 35 |
35LPM |
- - Order Example : GLS-7-3-4 (7lpm, 10um, 220V(1P))
- * Available to order other than the above products.
