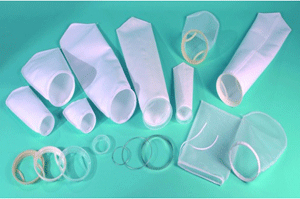

Bag Filter

Bag Filter
Features
  • offers various filter grades and has good tolerance to acid and alkali.
  • resistance to high volume of flow and esayrelacement of filter
Chemical resistance of bag filter media
  • Fibres used as media for bag filters such as polyester, polypropylene, nylon and nomex holds different characteristics depending on its chemical state and temperature.
WOUND FILTER
Polyester As the most used fibre, it has good economical efficiency, chemical resistance and heat resistance between 150-170℃.
Polypropylene Widely used in all fields of Chemical Industry due to its good resistance to acidity and basicity. However, it is only applicable within the temperature range of 90-100℃ and it is not suitable for Aromatic Hydrocarbon.
Nylon Chemical Resistance (except for Acidic Media) and high heat resistance (150-170℃)

A. Excellent B: Normal C: weak

Bag Filter
MEDIA Maximum Operating Temperature
(℃)		 Base Acid Oxidised medium Alcohol Ester alicyclic/aromatic/chloridated Oil, Fats
Aliphatic Aromatic Chloride
Polyester 150-170 A/B A/B B/C A A A B A A
Polypropylene 90-100 A A A A A A C B A
Nylon 150-170 A/B B/C B A A A A A B/C
Nomex 200-220 A/B A/B A A A A A A B
Wool 100-110 C A/B C A A A A A A
Fluorpolymer 250-270 A A A A A A A A A
Specifications

Bag Filter
PE 100 R 4
Filter Media Micron Rating Bag Filter Bag Size
PE = Polyester 1~200㎛ R = Ring type 01 Φ4" x 9"
PP = Polypropylene P = Plastic Flange 02 Φ4" x 14"
NMO = Nylon B = Bend type 03 Φ7" x 17"
04 Φ7" x 32"
Bag Filter
MEDIA / MICRON 1 5 10 25 50 100 150 200 400 600 800
PE FELT ● ● ● ● ● ● ●
PP FELT ● ● ● ● ● ● ●
NMO MESH ● ● ● ● ● ● ● ● ●

※ Custom order on request
