SQUARE TYPE DAMPER VALVE & BALLAST VALVE

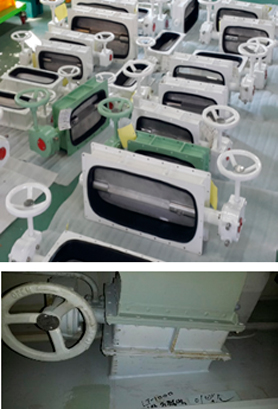

SQUARE TYPE DAMPER VALVE

  • Used for HVAC Square Duct System
  • Water-Tight type
  • Welded Steel Construction with NBR Seat
  • Shock qualified by Test(MIL-S-901D)
  • Installed for All kind of ROKN Vessel
Supply Record
  • Client & End User: Hyundai Heavy Industries, Hanjin Heavy Industries Co., Ltd, Daewoo Shipbuilding Co., Ltd.
  • Project Name:P157-164,S139-S167,H7049-7057
  • Delivery Year & Qty: 2016-2019 & 1508 EA

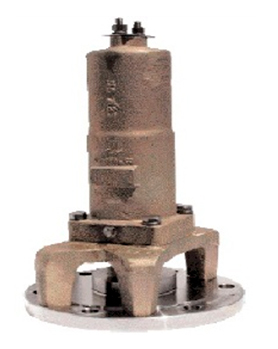

Ballast valve

  • Used for Seawater Filling to Ballast Tanks or Void Space of the Amphibious Ships
  • Hydraulically Operated Submerged Type (Hyd. Power Unit is separately installed)
  • Constructed High-Quality Naval Bronze (Available in Stainless Steel)
  • Shock qualified by Test(MIL-S-901D)
  • Installed for ROKN Amphibious Ships (LPH, LST)
  • Available Size - 4” (100A) - 6” (150A) - 8” (200A) - 10” (250A) - 14” (350A)

Offshore
Ballast pump & Control valve

Battle ship (Landing ship)
Ballast control valve

Supply Record
  • Client & End User: Hanjin Heavy Industries Co., Ltd
  • Project Name: P139-P156
  • Delivery Year & Qty: 2017-2018 & 131 EA

HELI FUEL SUPPLY SYSTEM

HIFR FACILITY

  • Helicopter In Flight Refueling Hose
  • Deck Tie-Down Fittings
  • HIFR Rig Assembly with Beakaway Coupling
  • Shock qualified by Test(MIL-S-901D)
  • Installed for All kind of ROKN Vessel
Supply Record
  • Client & End User: Hyundai Heavy Industries, Hanjin Heavy Industries Co., Ltd, Daewoo Shipbuilding Co., Ltd & Korea Navy
  • Project Name: P158-164,H7057,S139
  • Delivery Year & Qty: 2017-2019 & 15 EA

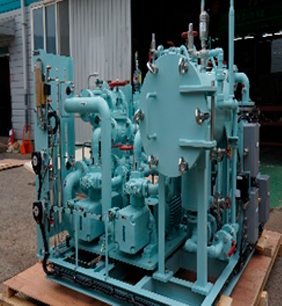

PUMP/FILTER MODULE

  • Two Fueling Pumps (Ex-proof for JP-8 system)
  • One Filter/Water Separator
  • Piping and Instruments on a Skid-mount
Supply Record
  • Client & End User: Hyundai Heavy Industries, Hanjin Heavy Industries Co., Ltd, Daewoo Shipbuilding Co., Ltd & Korea Navy
  • Project Name: P158-164,H7057,S139
  • Delivery Year & Qty: 2017-2019 & 10 EA

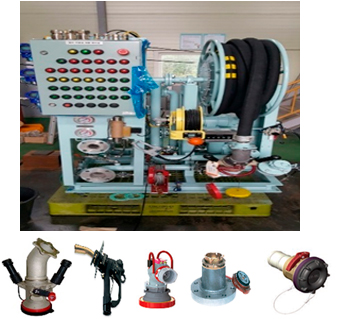

DISPENSING MODULE

  • Fuel Hose Reel Assembly
  • Fuel Guard Monitor
  • Flow meter
  • Control Panel
  • Piping and Instruments on a Skid-mount
Supply Record
  • Client & End User: Hyundai Heavy Industries, Hanjin Heavy Industries Co., Ltd, Daewoo Shipbuilding Co., Ltd & Korea Navy
  • Project Name: P158-164,H7057,S139
  • Delivery Year & Qty: 2017-2019 & 10 EA
HOSE REEL AND HOSE ASSEMBLY

  • Manual Rewind Reel
  • Power Rewind Reel (Electric or Pneumatic)
  • ELAFLEX Refueling Hoses
Supply Record
  • Client & End User: Hyundai Heavy Industries, Hanjin Heavy Industries Co., Ltd, Daewoo Shipbuilding Co., Ltd & Korea Navy
  • Project Name: P154,HN703-704,S139
  • Delivery Year & Qty: 2016-2018 & 41 EA

  • ▲ FRIGATE and DESTRYER
    (ROKN FFX, DDH-II, DDG)

  • ▲ AMPHIBIOUS SHIPS
    (ROKN LPH, LST)

  • ▲ LOGISTIC SUPPORT SHIP
    (ROKN AOE-II)

  • ▲ COASTGUARD PATROL SHIPS
    (1500~5000 TON CLASS)
