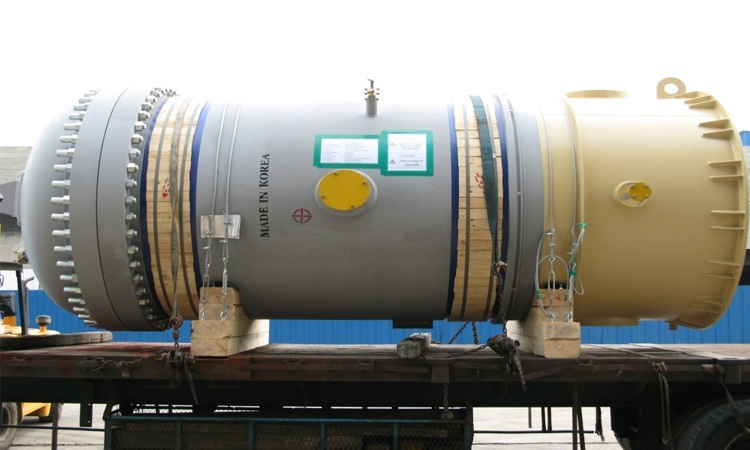

Detail

• Size: ID2,000mm x 7,420mmTL to TL / Weight 14.5Ton

[Material]

• Shell: SA516 Gr.70 Normalized
• Head: SA516 Gr.70 Normalized
• Forging/Flange: SA105 Normalized
• Certificate: ASME “U” Stamp w/National Board
• Project & User: NCP(2009) / JGC

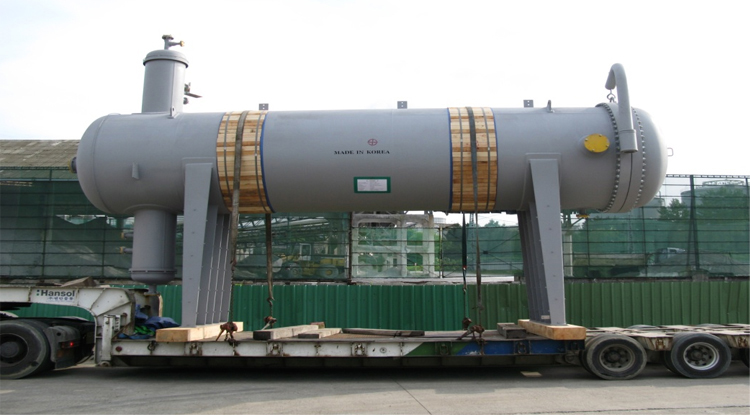

Detail

• Size: ID2,200mm x 2,980mm TL to TL / Weight 11.4Ton

[Material]

• Shell: SA516 Gr.70 Normalized
• Head: SA516 Gr.70 Normalized
• Forging/Flange: SA105 Normalized
• Certificate: ASME “U” Stamp w/National Board
• Project & User: NCP(2009) / JGC

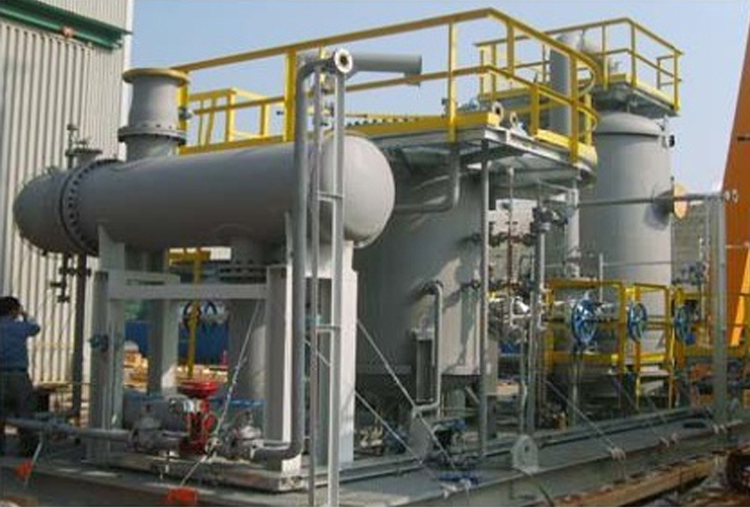

Detail

• Size: W5,200mm x H7,000mm x L11,000 / Weight 42Ton

[Material]

• SA516 Gr.70
• Remark
• Knock-Out Drum 1set & S/T Heat Exchanger 1set
• Fuel Gas Filter 2sets & Prefilter 2sets
• Control Valves and Instruments
• Project & User: AL WADA PDH/PP(2008) / Sahara Bassel & DIC

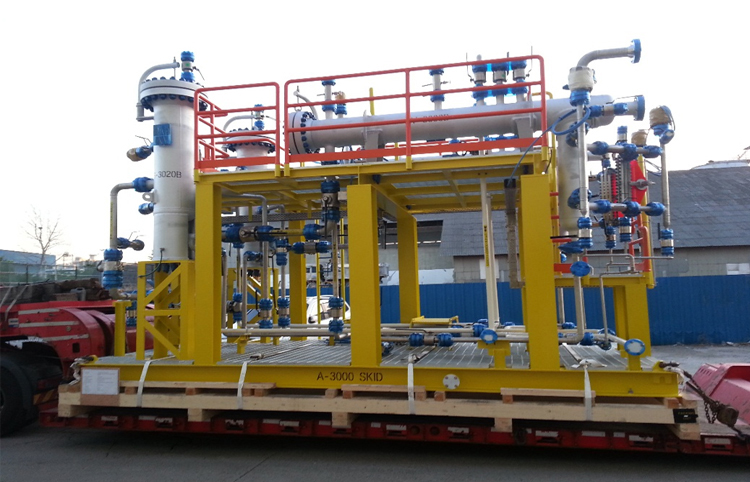

Detail

• Size: IW4,600mm x H8,900mm x L8,500mm / Weight 22Ton

[Material]

• SA240-316L / Duplex S/S S31803

[Remarks]

• 4-Off Filters
• 82-Off DSS(S31803) Valves
• Junction Box, Control Valves and Instruments
• Project & User: SK316 Development(2015) / Petronas & Technip

Detail

• Project: PRE(in UAE) project
• Delivery: 2012. Dec. ~ 2013. Jan.

Detail

• Project: JAC(in Singapore) project
• Delivery: 2013. Jan.

Detail

• Project: SHU2(in Singapore) project / Delivery: 2013. Jan.
